Mounting Foot MT400201
Material:
Reinforced polyamide.
Oils and greases resistant.
Surface:
Satin.
Color:
Black (RAL 9011)
Insert:
Zinc plated steel articulated. Threaded stem.

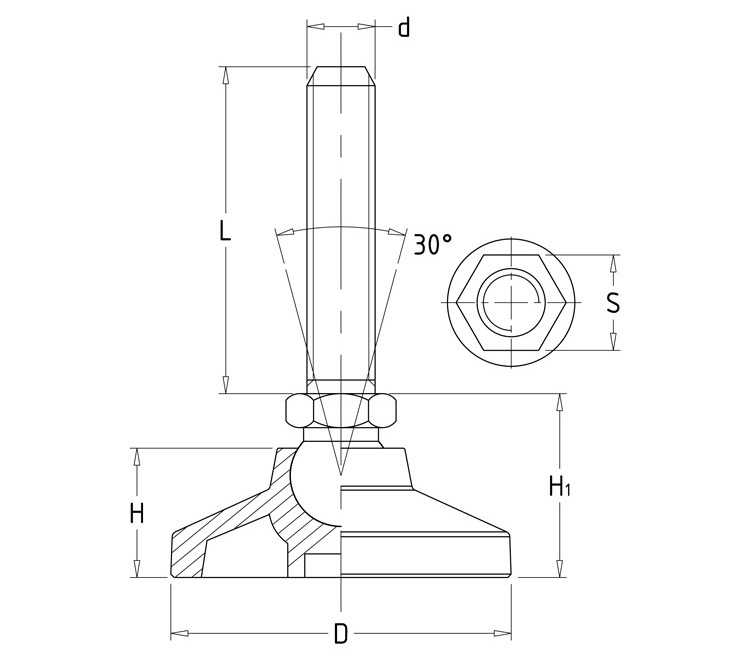

| D | d | L | H | H1 | S | (N) |
| 38 | M8 | 30,50 | 10 | 16 | 14 | 100KG |
| M10 | 30,50 |
| M12 | 30,50 |
| 50 | M8 | 50,100 | 20 | 25 | 14 | 300KG |
| M10 | 50,100 |
| M12 | 50,100 |
60
| M10 | 50,100 | 24 | 30 | 14 | 500KG |
| M12 | 50,100 |
| M16 | 50,100,150 | 24 |
| M20 | 50,100,150 |
| 80 | M10 | 50,100,150 | 25 | 32 | 14 | 600KG |
| M12 | 50,100,150 |
| 80H | M12 | 50,100,150 | 29 | 38 |
| M16 | 50,100,150 | 22 |
| M20 | 50,100,150 |
| M24 | 50,100,150 |
We are professional manufacturers of mechanical components for the automation industry, which specialize in clamping lever, clamping knob, hand wheel, oil gauge, indicators of location adjustment ,industrial hinge and so on.
Our advantage:
1. timely products delivery;
2. 24 hours service;
3. highest quality;
4.10 years cooperating with foreign customers experience;
5. powerful design according to customer's idea.
| material | Reinforced polyamide. |
| surface | satin |
| Color | Black |
